Reference Table Admin

The Reference Table Admin page allows you to create and manage reference-data tables for your portal view.

Global vs. Host-Specific Tables

Reference tables can be defined at two levels:

1. Global Reference Tables: These are built-in or system-wide tables that have no specific hostId assigned (the Host ID column will display as “Global”). They provide a baseline set of reference data accessible to all hosts.
2. Host-Specific Reference Tables: These are tables created by and assigned to a specific host (displaying the host’s ID in the Host ID column). They contain reference data that is isolated and only accessible to that particular host.

Tip

Expanding Global Tables: You can define a host-specific reference table using the exact same table name as an existing global reference table. By doing this, you can expand or override the global reference table entries with your own host-specific values, tailoring the reference data to your host’s needs without affecting other hosts.

Usage in Forms.json

The primary consumer of reference tables in portal-view is the React Schema Form component, which dynamically renders dropdowns, radios, and multi-select fields based on Forms.json.

In portal-view/src/data/Forms.json, fields that require dynamic reference data specify a URL pointing to the backend API.

Example of a standard dropdown:

{
  "key": "user_type",
  "type": "select",
  "titleMap": {
    "url": "/r/data?name=user_type"
  }
}

Example of a cascading (dependent) dropdown using the host context and a parent field value:

{
  "key": "province",
  "type": "select",
  "titleMap": {
    "url": "/r/data?name=province&host={0}&rela=country-province&from={1}"
  }
}

The /r/data API

The /r/data endpoint is exposed by the portal-service (specifically in apps/portal-service) to serve reference data securely and efficiently to the frontend.

It accepts several important query parameters to shape the response:

• name: The tableName of the reference table you want to fetch (e.g., country, user_type).
• host: The hostId of the current user’s workspace. Passing this parameter ensures that any host-specific reference values (overrides/expansions) are merged seamlessly with the global values.
• rela: The ID of a relationship mapping (Reference Relation). This is used for dependent datasets (e.g., country-province).
• from: The actual selected value of the parent field in the relationship (e.g., if country was set to US, from=US would fetch only provinces belonging to the US).

The portal-service securely resolves these requests, fetches the necessary values from the underlying ref-query service, evaluates relationships, and returns a key-value map compatible with react-schema-form’s titleMap or dynaselect.

Example: Global vs. Host-Specific Expansion (createInstance form)

A perfect example of how global and host-specific tables interact is found in the Create Instance form, specifically between the environment and envTag fields.

1. The Global Field (environment)

The environment field is designed to ONLY show the standard global environments. It does not pass the host parameter to the API.

{
  "key": "environment",
  "type": "dynaselect",
  "multiple": false,
  "action": {
    "url": "/r/data?name=environment"
  }
}

2. The Expanded Field (envTag)

The envTag field allows you to select a specific environment tag. This field passes the hostId to the API, meaning the resulting dropdown will combine the global environments WITH any host-specific environment tags you have defined.

{
  "key": "envTag",
  "type": "dynaselect",
  "multiple": false,
  "action": {
    "url": "/r/data?name=environment&host={0}",
    "params": [
      "hostId"
    ]
  }
}

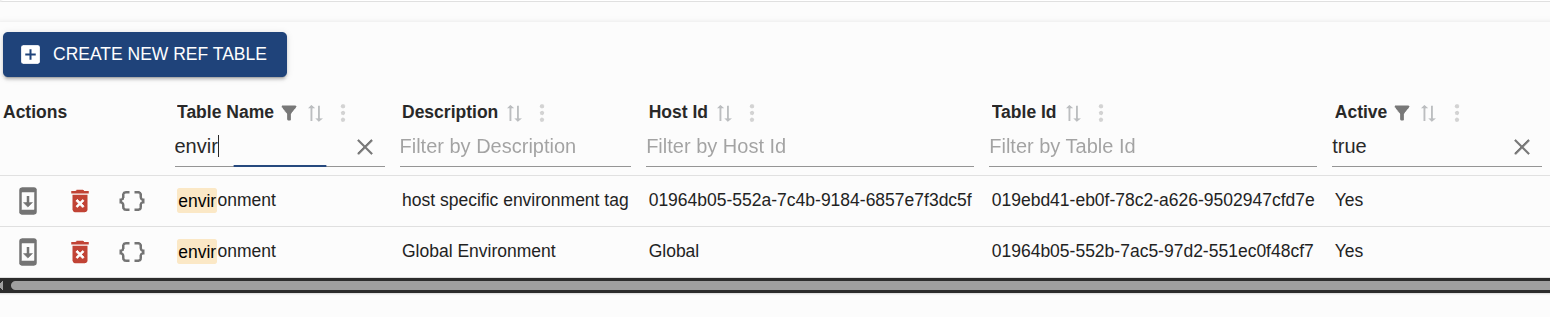

Viewing Both Tables

To see both the global and your host-specific reference tables in action:

1. Go to the Reference Table Admin page.
2. In the column filters, type environment under the Table Name column.
3. You will see two results:
   • One row with an empty (or “Global”) Host ID. This is the global table.
   • One row with your specific Host ID. This is where you can add custom tags that will only appear in your envTag dropdown.
